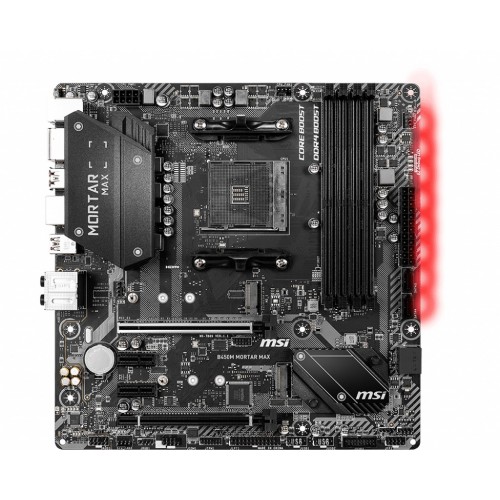

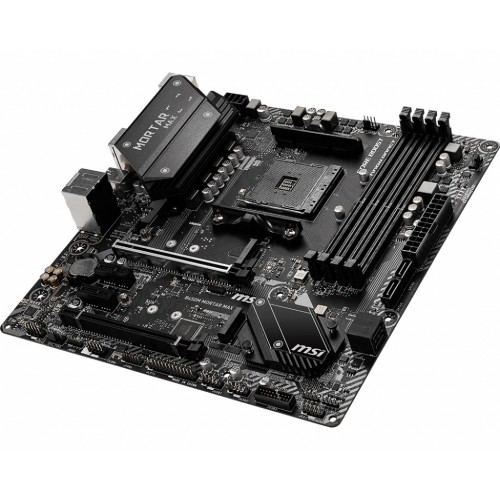

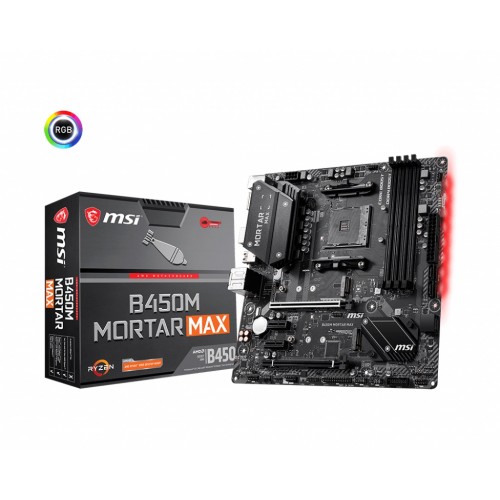

Model: MSI B450M MORTAR MAX Military Style
Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen
Supports DDR4, up to 4133(OC) MHz
Extended Heatsink Design
Lightning Fast Game experience
Categories: AMD Motherboard
| Basic Information | |
|---|---|
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD B450 Chipset |
| BIOS | Flash BIOS Button |
| Form Factor | M-ATX Form Factor |
| Audio | Realtek ALC892 Code: - 7.1-Channel High Definition Audio - Supports S/PDIF output |
| Expansion Slots | |
| PCI | - 1 x PCIe 3.0 x16 slot (PCI_E1) - Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors - Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors - Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors - 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1 - 2 x PCIe 2.0 x1 slots2 |
| M.2 Socket | AMD B450 Chipset: - 1 x M.2 slots (M2_2, Key M)1 - Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices AMD CPU: - 1x M.2 slot (M2_1, Key M)1 - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen (AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
| Memory | |
| Type | DDR4 |
| Slots | - 1 x PCIe 3.0 x16 slot (PCI_E1) - Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors - Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors - Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors - 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) - 2 x PCIe 2.0 x1 slots |
| Supported Memory | - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) - Supports non-ECC UDIMM memory - Supports ECC UDIMM memory (non-ECC mode) |
| Maximum Memory | - support up to 64GB |
| Graphics | |
| Graphics | Only support when using AMD Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors |
| Max Shared Memory | Maximum shared memory of 2048 MB |

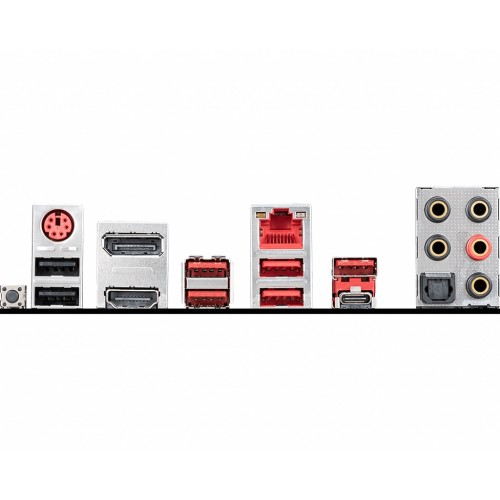

| Connector & Ports | |
| HDMI | 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz |
| Display Port (s) | 1 x DisplayPort, support a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz |
| DVI-D (s) | Yes |
| USB (s) | AMD B450 Chipset: - 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel - 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel - 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU AMD Processor: - 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| LAN Port (s) | 1 x Realtek RTL8111H-CG Gigabit LAN controller |
| Supported Storage | AMD B450 Chipset: - 4 x SATA 6Gb/s ports1 - 1 x M.2 slots (M2_2, Key M)1 - Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices AMD CPU: - 1x M.2 slot (M2_1, Key M)1 - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
| Audio | - 7.1-Channel High Definition Audio - Supports S/PDIF output |
| Internal I/O Ports | 1 x 24-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connector (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 3 x 4-pin system fan connectors 2 x 5050 RGB LED strip 12V connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Serial Port connector 1 x Parallel Port connector |
| TPM (Trusted Platform Module ) | 1 x TPM module connector |
| Warranty Information | |
| Manufacturing Warranty | 03 Years Warranty |
| Others | |
| Special Features | RAID: AMD B450 Chipset - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0 and RAID 1 for M.2 NVMe RAID |
| Bundled Software | - Support for Windows 10 64-bit - Support for Windows 7 64-bit (To support Windows 7 64-bit, must install an AMD Pinnacle Ridge & Summit Ridge CPU) |
