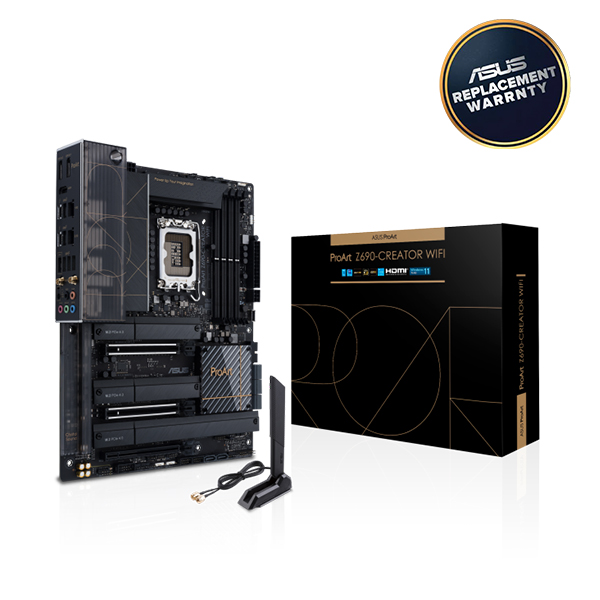

Brand: Asus
12th Gen Intel Processors
4x DIMM, Max.128GB, DDR5
PCIe 5.0 x16 slot
4 x M.2 slots
256 MB BIOS
SKU:
Categories: Intel Motherboard
| Storage. | Supports 4 x M.2 slots and 8 x SATA 6Gb/s ports Intel® 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110– Intel® 12th Gen processors support PCIe 4.0 x4 mode.Intel® Z690 Chipset**M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)8 x SATA 6Gb/s ports |
| Audio Port | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*– Impedance sense for front and rear headphone outputs– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)– Supports up to 32-Bit/192 kHz playback* |
| Chipset | Z690 |
| Expansion Slots | Intel® 12th Gen Processors*2 x PCIe 5.0/4.0/3.0 x16 slot(s) (supports x16 or x8/x8 mode(s))Intel® Z690 Chipset**1 x PCIe 3.0 x16 slot (supports x4 mode) |
| Form Factor | ATX |
| Graphics | 1 x HDMI® port** 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort |
| Internal I/O Ports | Fan and Cooling related1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)1 x 4-pin AIO Pump header(s)5 x 4-pin Chassis Fan header(s)Power related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related4 x M.2 slots (Key M)8 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 2×2 (support(s) USB Type-C®)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 header(s)1 x AURA RGB header(s)1 x Clear CMOS header1 x COM Port header1 x CPU Over Voltage jumper1 x Front Panel Audio header (AAFP)1 x M.2 slot (Key E)1 x Speaker header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x RTC Battery header1 x Thermal Sensor header |
| CPU | LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| PCI | 5.0/4.0/3.0 |
| Memory Slots | 4 |
| Memory Type | 128GB DDR5 |
| BIOS | 256 Mb |
| USB Ports | Rear USB:Total 8 ports 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support6 x USB 3.2 Gen 2 port(s) (6 x Type-A)Front USB:Total 7 ports 1 x USB 3.2 Gen 2×2 connector(s) (support(s) USB Type-C® with 60W PD/QC4+)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Warranty | 3 Years Replacement Warranty |
