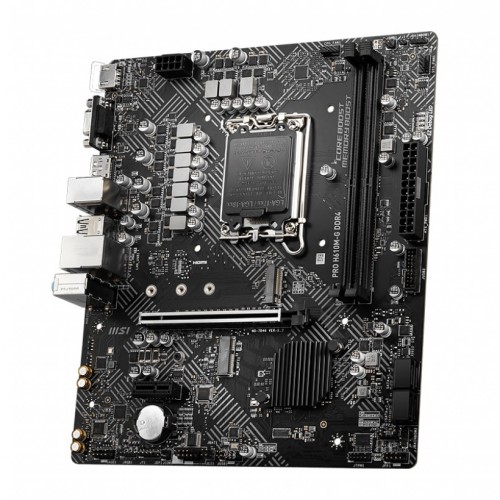

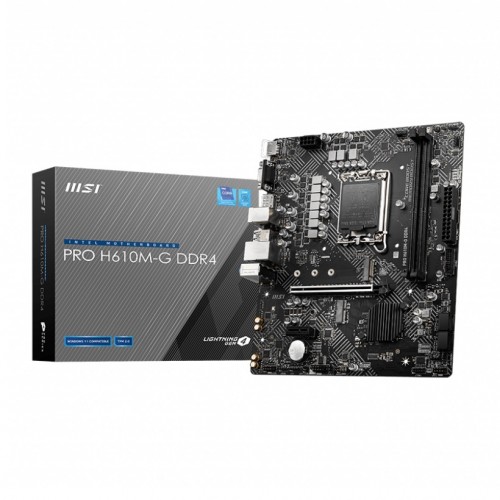

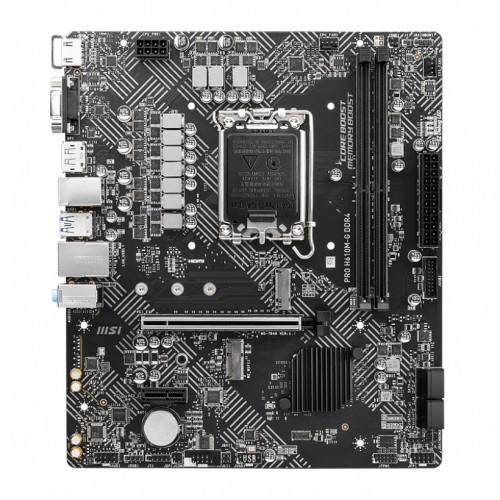

Model: PRO H610M-G DDR4
Supports 12th Gen Intel Core, Pentium Gold & Celeron processors for LGA 1700 socket
Supports DDR4 Memory, up to 3200(MAX) MHz
Lightning Fast Experience: PCIe 4.0
Core Boost, Memory Boost, Audio Boost
Danh mục: Intel Motherboard
| Basic Information | ||
|---|---|---|
| Supported CPU | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700 | |
| Chipset | Intel H610 Chipset | |
| Form Factor | mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm) | |
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio | |
| Expansion Slots | ||
| PCI | 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2x DDR4 memory slots | |
| Supported Memory | Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory | |
| Maximum Memory | Support up to 64GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz | |

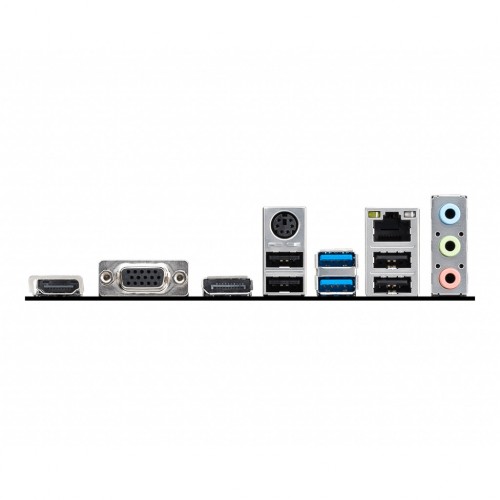

| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port (s) | 1x DisplayPort | |
| VGA (s) | 1x VGA port | |
| USB (s) | Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) | |
| LAN Port (s) | 1x Intel I219V 1Gbps LAN controller | |
| Supported Storage | 4x SATA 6Gb/s ports 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors | |
| Internal I/O Ports | POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED | |
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
